LPS-RK-80SP BUSSMANN LOW-PEAK DUAL ELEMENT TIME DELAY FUSE 600VAC 300VDC

LPS-RK-80SP BUSSMANN LOW-PEAK DUAL ELEMENT TIME DELAY FUSE 600VAC 300VDC

$18.80

Availability: In stock

Qty:

Add to Wishlist

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

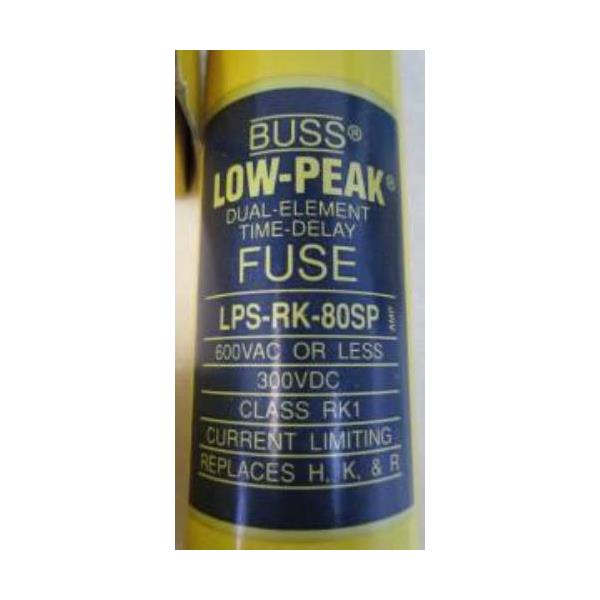

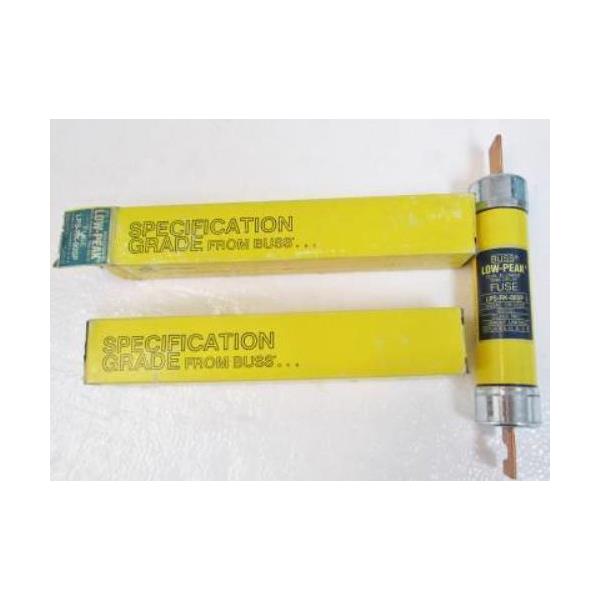

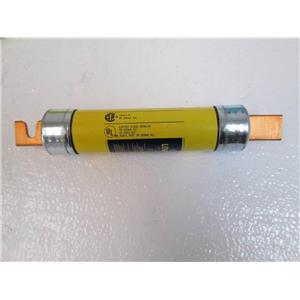

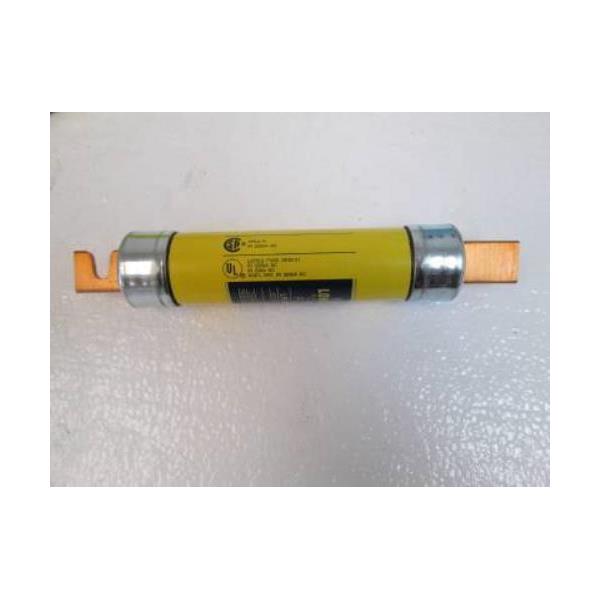

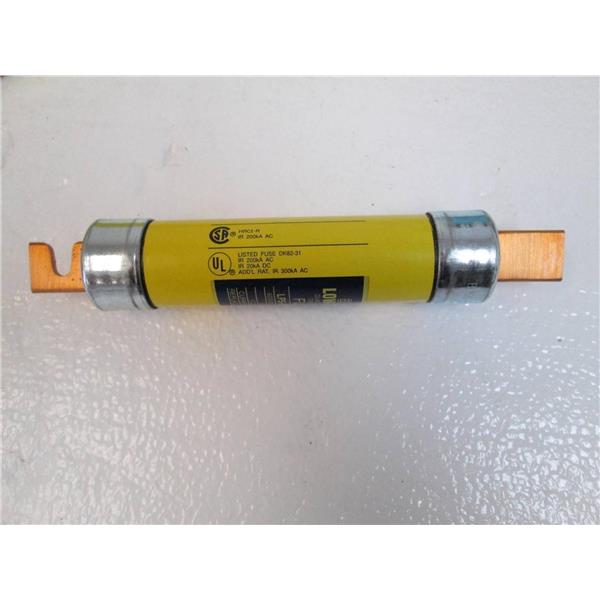

LPS-RK-80SP BUSSMANN LOW-PEAK DUAL ELEMENT TIME DELAY FUSE 600VAC 300VDC

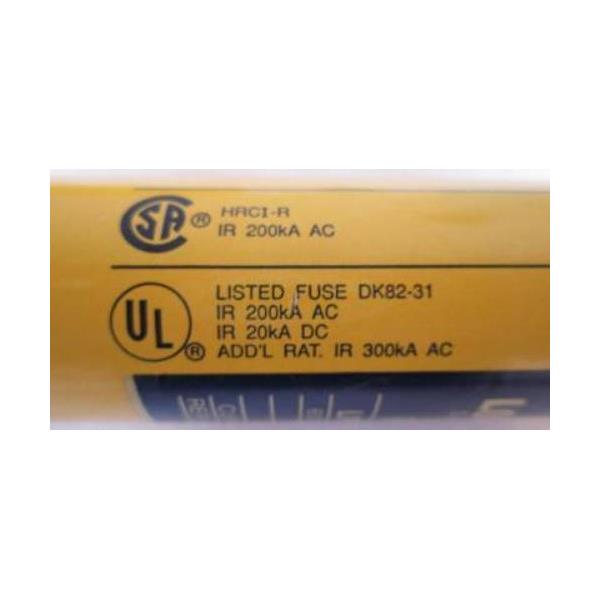

HPCI-R IR 200 A AC

LISTED FUSE DK-92-31

IR 200KA AC IR 20kA DC ADDT'L RAT. IR 300kA AC

CLASS RK-1

CURRENT LIMITING

REPLACES H. K. & R

Features:

• Industry’s only UL Listed and CSA Certified fuse with a

300kA Vac interrupting rating that exceeds requirements for

virtually all applications

• Current-limitation for maximum short-circuit protection

• Easy selective coordination with all Low-Peak fuses using

simple 2:1 ampacity ratio

• “No damage” Type “2” protection for IEC and NEMA

starters when properly sized

• High inrush current motor protection

• Time-delay permits 130% FLA sizing for back-up motor

protection

• Protection against single-phase motor damage

• Low watt loss power consumption

Applications:

• Feeder and Branch Circuits

• Motors

• Transformers

• Solenoids

• General Purpose Circuits

We strive for 5-star service by stating upfront our policies, shipping rates and shipping frequency. We strive to earn 100 percent '5 Star' scores from you. The star-scores are very important to us, because eBay uses them to determine our fees and our visibility in the eBay search results. Our future success depends on it! —Thank you!

S317 #27

12 X 8 X8 WT 2 lbs

Specifications

Condition	New – Open box
Brand	Unbranded
MPN	Does not apply

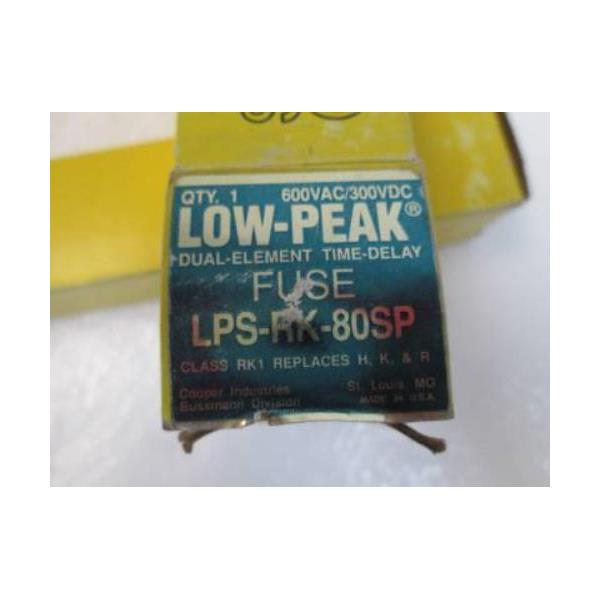

Condition Description	Box is a little worn but fuses inside are new
