Details
SHIPPING NOTE: We offer several shipping options, including FedEx Overnight. To see your different options, please click on the "Shipping and Payments" tab.

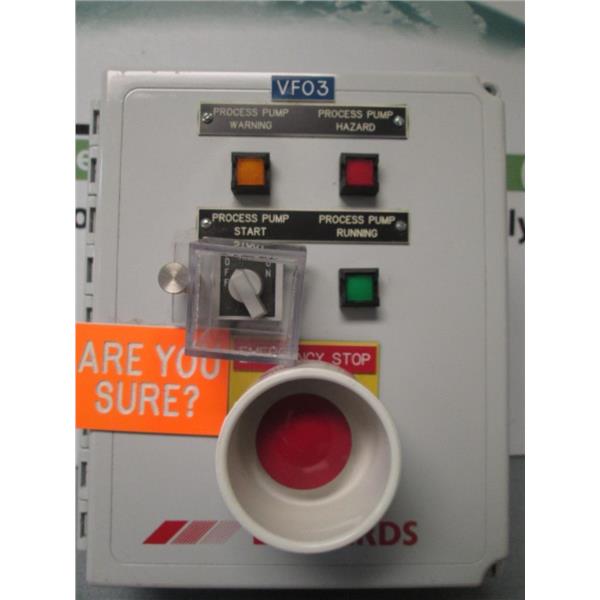

Edwards IQDP80/QMB500 Process Pump External Emergency Shut Off/Stop/Alarm Control/Controller Box.
- Make: Edwards
- Model / Part #:IQDP80/QMB500
- Description: Emergengy Shut Off/Stop/Alarm Control / Controller Box
- Includes all/only items pictured.
Testing:
We don't have the resources necessary to thoroughly test everything. We do test items the best that we can though and try to describe them as honestly and accurately as we can.
Here is what I am able to tell you about this item:
Cosmetic Condition: Used with little user wear showing Below I have posted more info from the PDF file online.
Connect to your emergency stop circuit (optional) Note: If you do not connect to your own control equipment, you must fit the emergency stop connector mating-half supplied to the external emergency stop on the Electrics Module. If you do not, you will not be able to operate the iQ system. If required, you can connect your own control equipment to the iQ system to shut down the iQ system in an emergency. Use the following procedure: 1. Remove the link between pins 1 and 2 of the external emergency stop connector mating-half supplied. 2. Connect a suitable cable to the external emergency stop connector mating-half; Table 3-5 shows the use of the pins in the connector. 3. Refer to Figure 1-7. Fit the connector mating-half to the external emergency stop connector (11) on the rear of the Electrics Module. Pin(s) Use 1 and 2 Linked as supplied. Remove the link and connect these pins to your normally-closed, isolated external emergency stop circuit. 3 and 4 Isolated auxiliary contacts of the emergency stop switch on the Electrics Module (Figure 1-5, item 4). 5 24 V a.c. continuous output; maximum current 625 mA 6 0 V return Table 3-5 - Pins in the emergency stop connector.
Please note that we (Kellan Inc) are a commercial and industrial surplus product dealer. We acquire our products from company closures, obsolete systems, government surplus, overstock, etc. Unless otherwise indicated, all products include our 14-day warranty. However, most products do not include a "manufacturer's warranty".
Products are tested to the best of our abilities. This can include a power-up test, navigating menus, performing simple operational tests, etc. We do not always have the resources and/or abilities to fully test each item we sell. However, we do guarantee and warranty all of our products (unless otherwise advertised "as is", "broken", etc.). Our standard guarantee/warranty period is 14 days. This period begins on the delivery date. This gives the customer enough time to receive, inspect, and test the product - to make sure the product is satisfactory. If there are any issues, please contact us.
We present our surplus products as accurately as possible. Please note that our products only include the pictured items. If an item is not in the picture (i.e. a power adapter, electrode, original packaging, etc.) - it is likely not included. That rule applies to "new in box" and "new, no box" items. Sometimes, if the original packaging has a lot of shelf-wear, we will discard it. If you have any questions about this, please contact us prior to purchasing.
E1-4
rl fdk 80824238
SG 4-1-4 List #2 Renee
Specifications
| Condition | Used |
|---|---|
| Brand | Edwards |
| MPN | IQDP80/QMB500 |

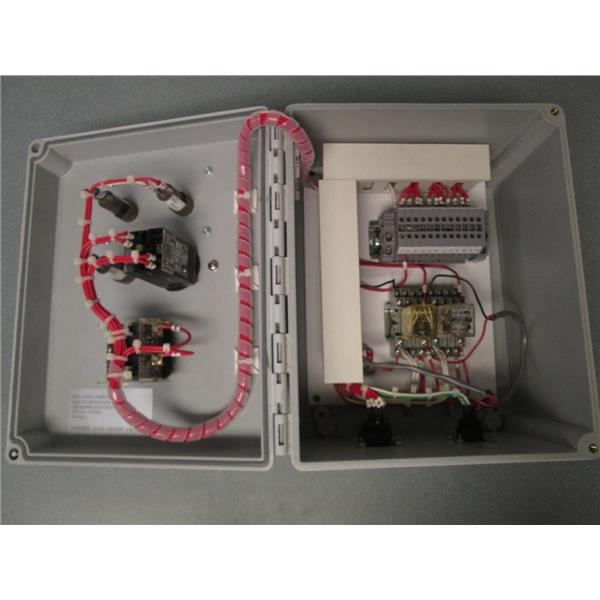

| Condition Description | Used with little user wear showing. External Emergency Shut Off / Stop Box is numbered and has some emergency statement plates added (see pics). Clean and like new insides. Hoffman enclosure box with Edwards insides. For use with the IQDP80 Pump/QMB500 Blower. Thank you. |
-
