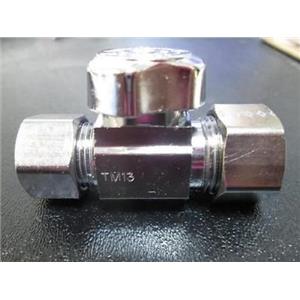

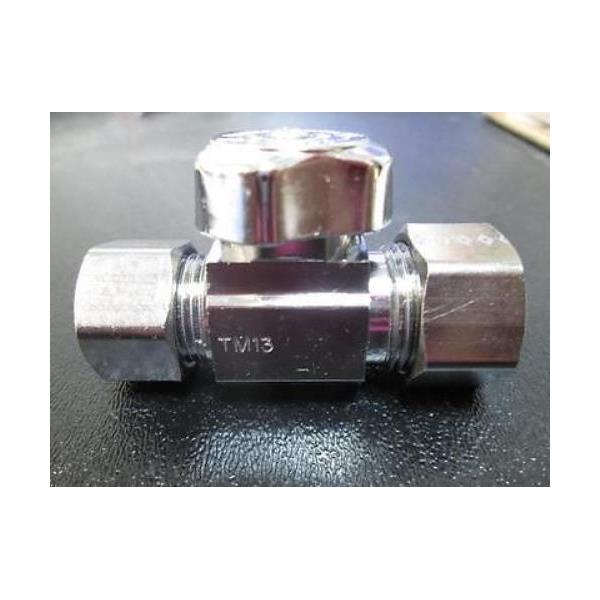

BrassCraft BC-G2CR34X C1-1/2" Inlet x 1/2" OD Comp Outlet 1/4-Turn Valve

$9.00

Availability: In stock

Qty:

Add to Wishlist

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

BrassCraft Model G2CR34X C1- 1/2 in. Nom Comp Inlet x 1/2 in. O.D. Comp Outlet 1/4-Turn Straight Valve.

What I can tell you about this item. This item is a Home Depot return. Item is new and unused but has no packaging available. We have multiple alike items with no differences. See pictures for more. Below I have posted the technical info. Thank you.

BrassCraft 1/2 in. Nominal Compression Inlet x 1/2 in. O.D. Compression Outlet 1/4-Turn Straight Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90 degree turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
Smooth, quarter-turn operation, on/off flow control with a 90 degree turn of the handle
1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
Easy-to-remove handle protects against accidental operation during rough-ins
1-piece body construction for strength, durability and long-lasting performance
Chrome-plated brass
Temperature rating: 40° to 140° F
Pressure rating: 125 psi maximum
No-lead certified
IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
Designed, machined and assembled in the USA

SPECIFICATIONS

Dimensions

Product Depth (in.)	2.38	Product Width (in.)	0.81
Product Height (in.)	1.44	Valve Inlet Diameter (in.)	0.5
Product Length (in.)	2.3800 in	Valve Outlet Diameter (in.)	0.500

Details

Compatible Pipe Material	Copper	Maximum Working Temperature (F)	140
Connection	Comp x Comp	Product Weight (lb.)	0.2448 lb
Material	Brass	Rating	125 psi
Maximum Pressure (psi)	125

Specifications

Brand	BrassCraft
Model	G2CR34X C1
MPN	205359697
Condition Description	This item is a Home Depot return. Item is new and unused but has no packaging available. We have multiple alike items with no differences. See pictures for more. Below I have posted the technical info. Thank you.
