**NEW** Phoenix Contact 2744348 D-SUB Bus Connector SUBCON-PLUS-PROFIB, 9 Pos

NEW Phoenix Contact 2744348 D-SUB Bus Connector SUBCON-PLUS-PROFIB, 9 Pos

$60.00

Availability: In stock

Qty:

Add to Wishlist

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

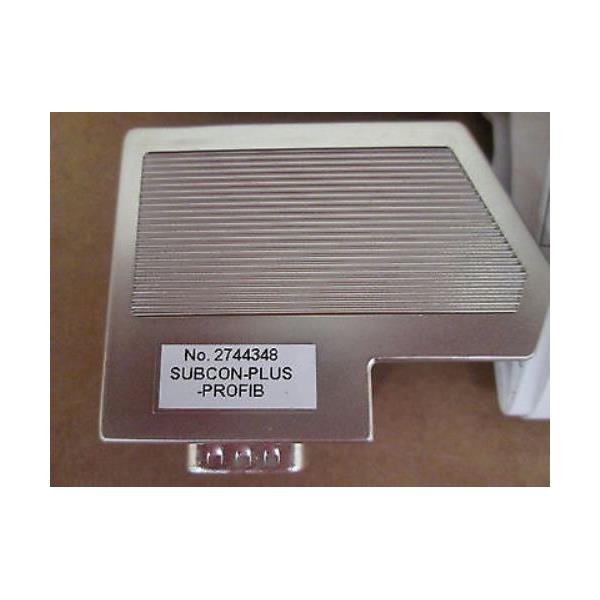

This listing is for a D-SUB bus connector SUBCON-PLUS-PROFIB; *Brand/Name: Phoenix Contact; *Model/Part #: 2744348; *Description: D-SUB Bus Connector> SUBCON-PLUS-PROFIB> original packaging (may have minor shelf wear)>

Nominal voltage U_N	5 V
Nominal current I_N	100 mA
Bus system	PROFIBUS DP
Signal	PROFIBUS
Insertion/withdrawal cycles	> 200
SUBCON fixing screws	4-40 UNC
Tightening torque	0.4 Nm
Housing material	ABS, metal-plated
Pin assignment	3, 5, 6, 8
MTTF	6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21 % (5 days a week, 8 hours a day))
	1817 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
	155 Years (SN 29500 standard, temperature 40°C, operating cycle 100 % (7 days a week, 24 hours a day))

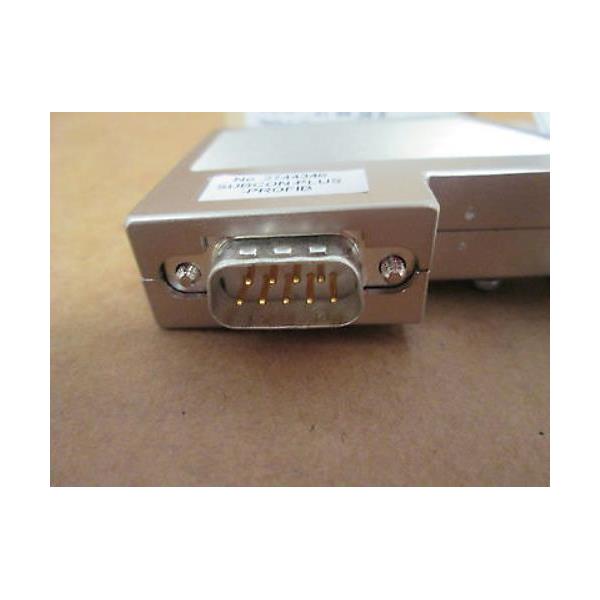

Connection	D-SUB connection
Number of positions	9
Connection method	D-SUB connector
Termination resistor	390 Ω
	220 Ω
	390 Ω (Can be connected externally)
Connection	PCB connection
Connection method	Spring-cage connection
Conductor cross section solid min.	0.12 mm²
Conductor cross section solid max.	0.5 mm²
Conductor cross section AWG min.	26
Conductor cross section AWG max.	20
Stripping length	5 mm
Tightening torque	0.4 Nm

Max. cable diameter	8.4 mm
Min. cable diameter	7.6 mm
Width	16 mm
Height	49.5 mm
Length	60 mm

s154-105 rg

Specifications

Brand	Phoenix Contact
Model	2744348
MPN	2744348
Country/Region of Manufacture	United States

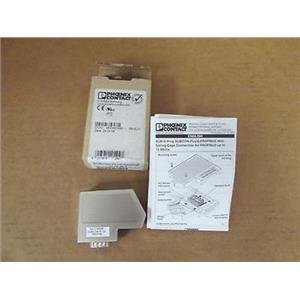

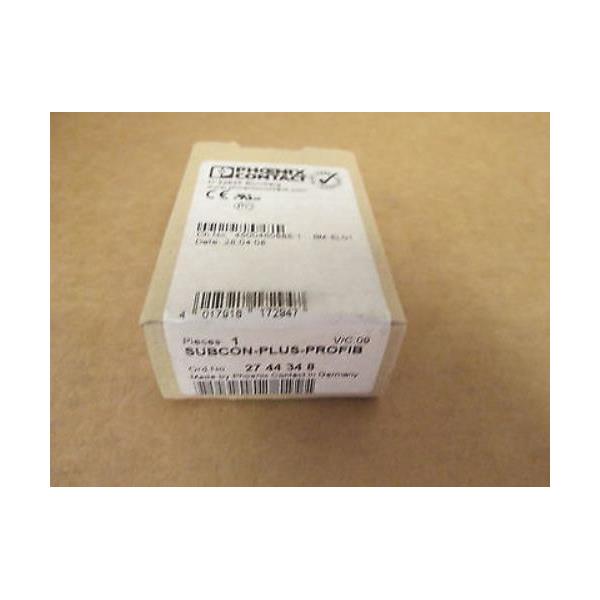

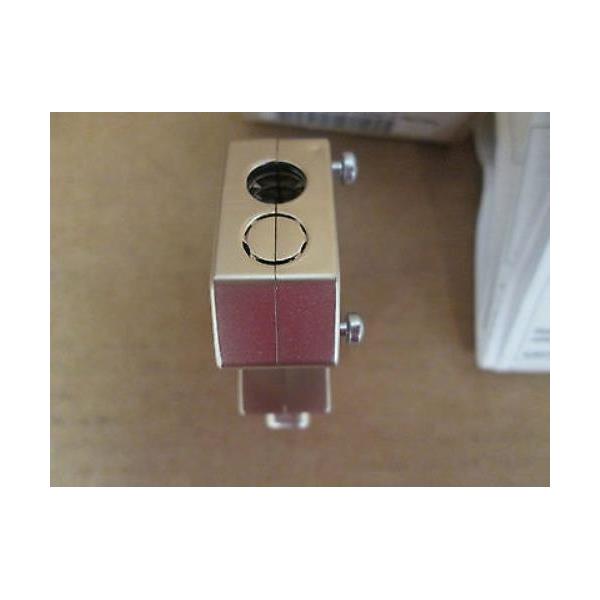

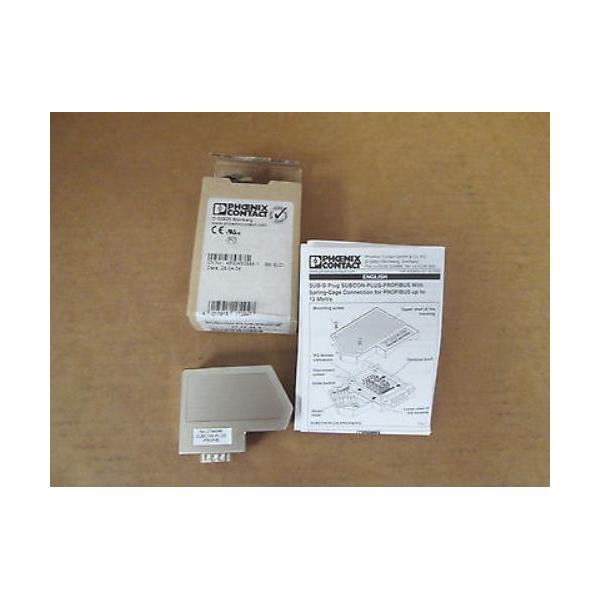

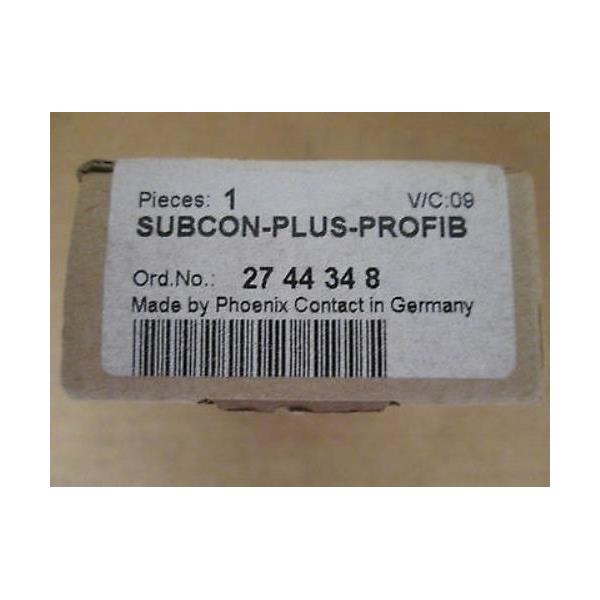

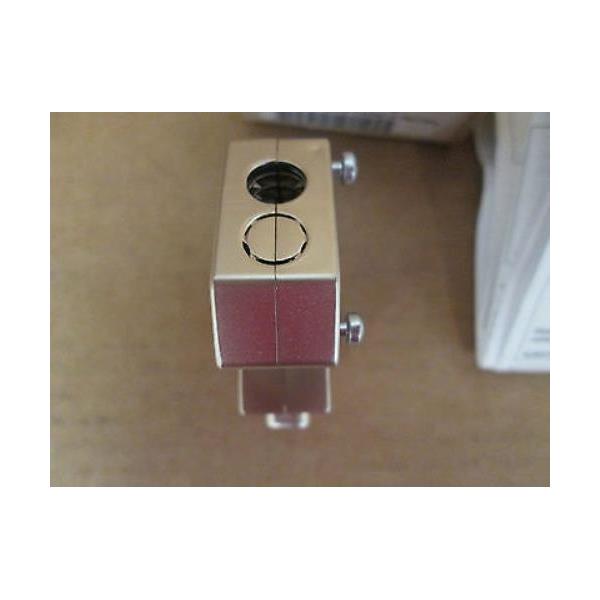

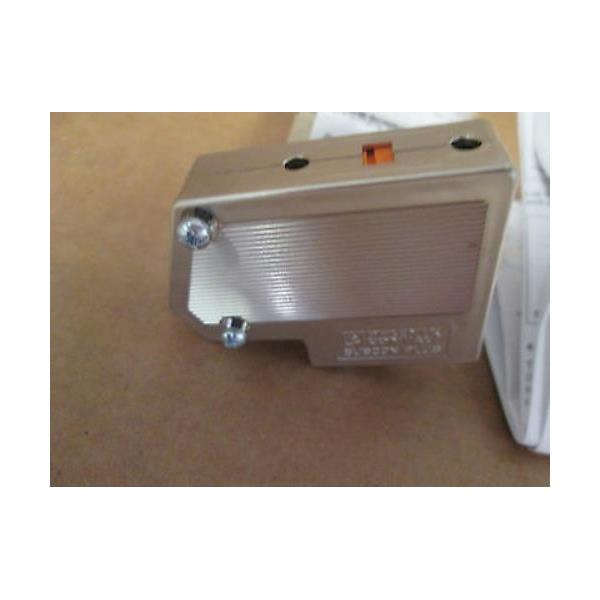

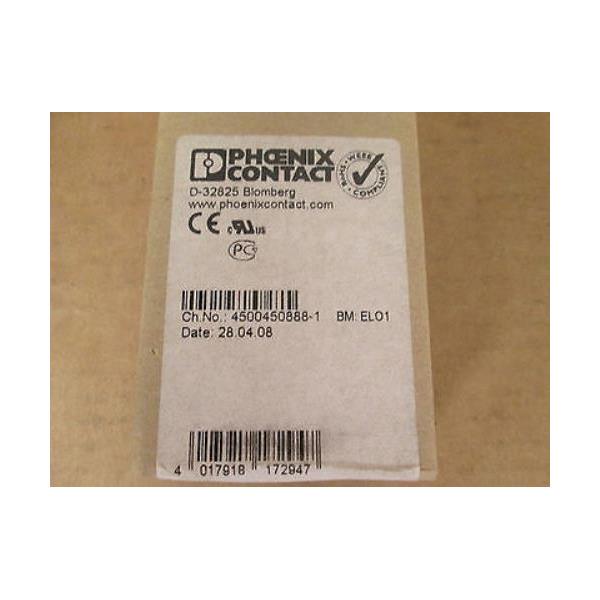

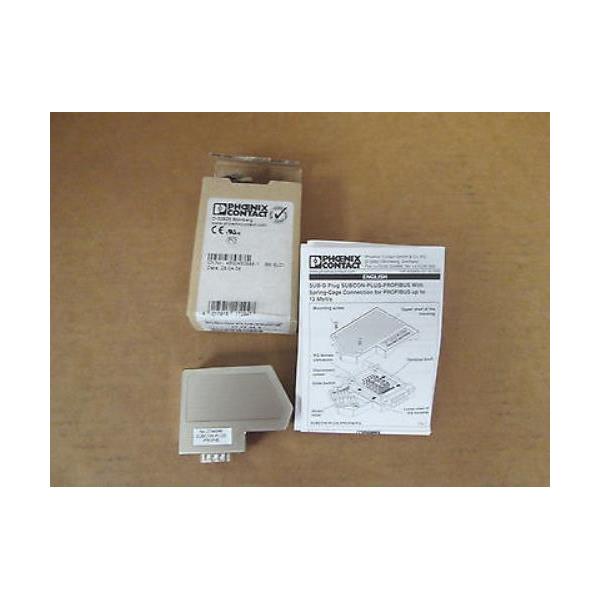

Condition Description	This item comes in its original packaging (which may have minor shelf wear), but item itself is new and unused (SEE PICTURES).
