Details
Please Be Advised! This unit was inspected and was found to be USED and in good cosmetic condition. The outer casing show signs of normal use. The lens is clear and contains some small scratches. The unit will be packaged in a plain brown box. The unit was removed from a working environment. Unit is not tested.

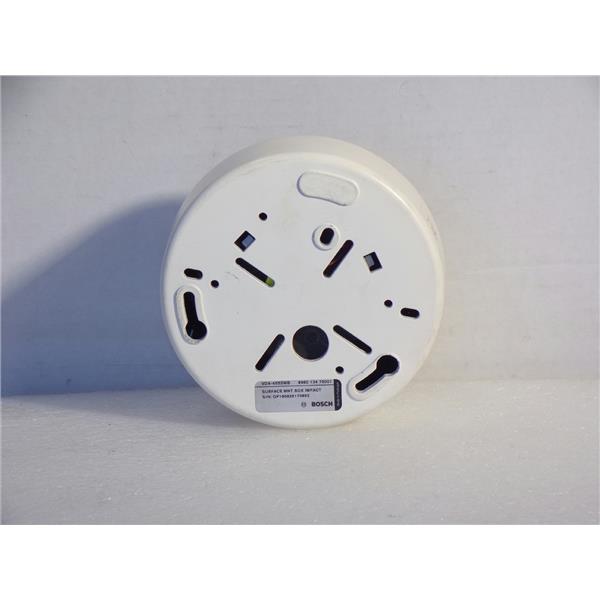

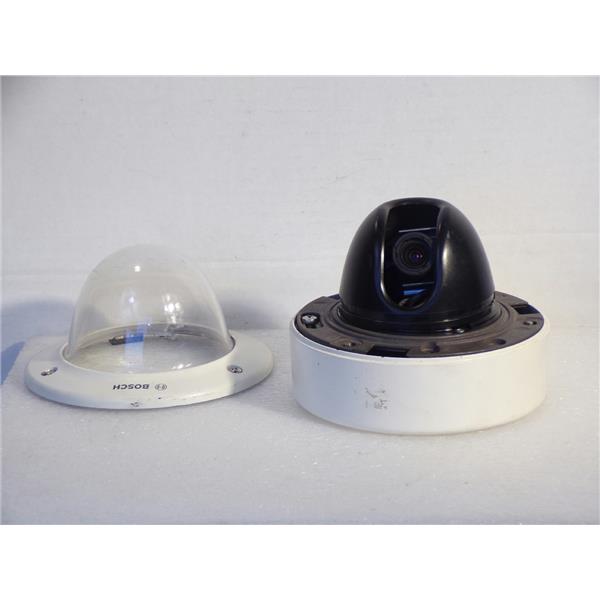

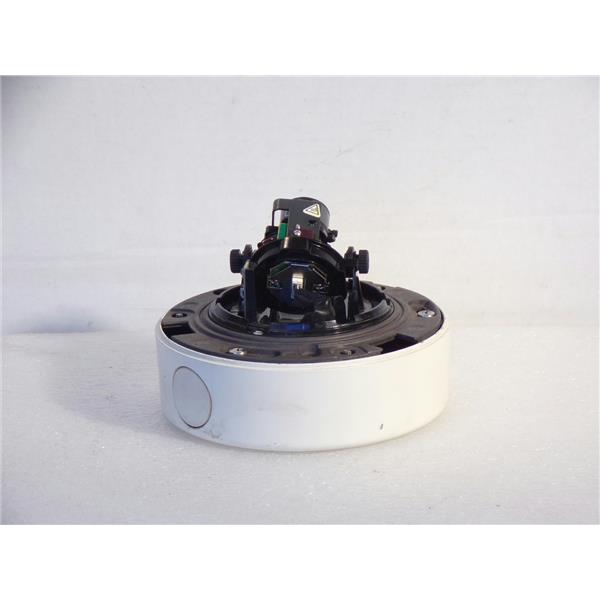

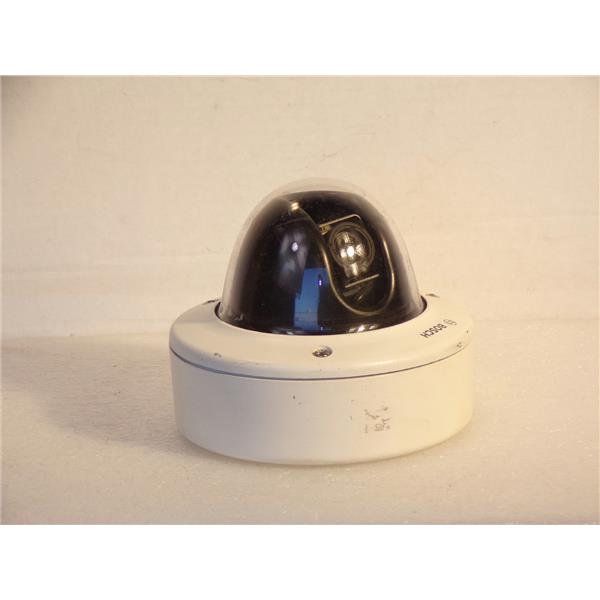

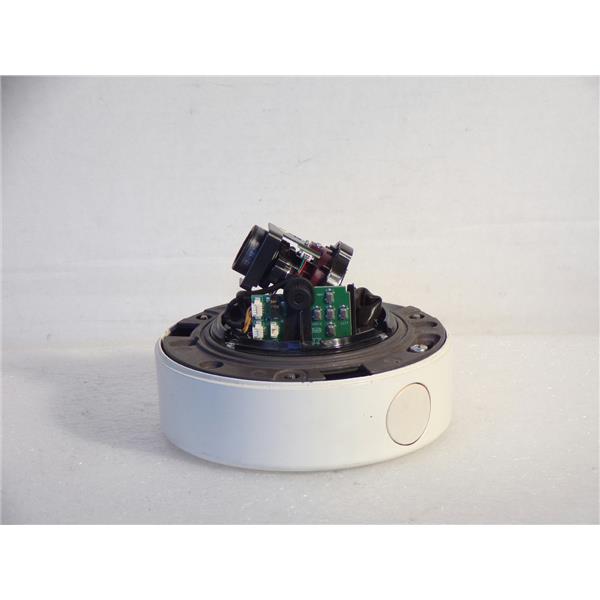

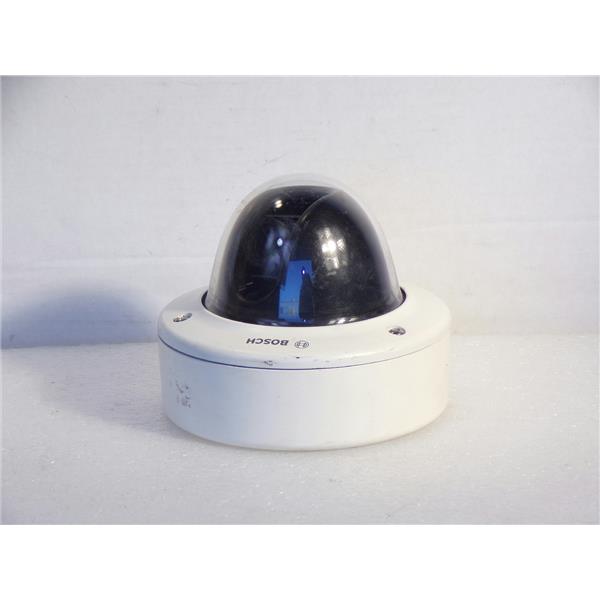

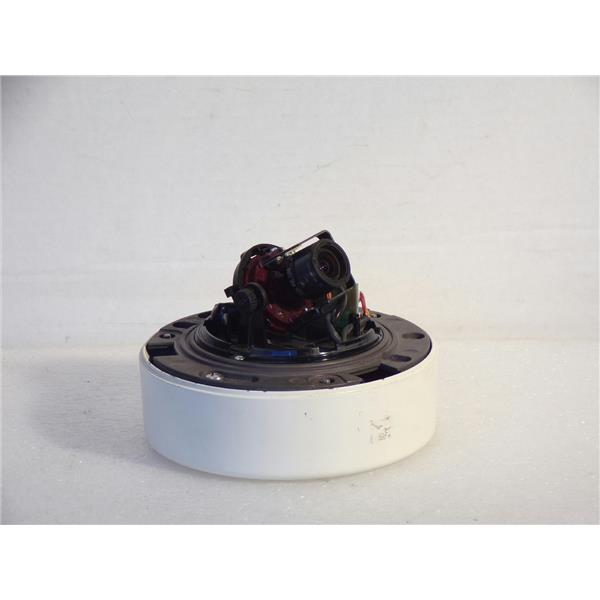

Bosch NDC-455V03-21P FlexiDome Color IP Camera / VDA-455SMB Bosch Flat Mount Box
Signal System NTSC
Sensor 1/3" CCD
Pixels 768 x 494
Compression H.264 (ISO/IEC 14496-10); M-JPEG, JPEG
Data Rate 9.6 Kbps to 6 Mbps
Resolution 4CIF: 704 x 480 (30 ips)
CIF: 352 x 240 (30 ips)
Delay Overall IP Delay: Min. 120 ms, Max. 240 ms
GOP Structure I, IP
Frame Rate 1 to 60 H.264
1 to 30 M-JPEG
Video Output Analog composite for service (2.5mm jack)
Horizontal Resolution 540 TVL
Signal to Noise Ratio 50 dB
Sensitivity Sensitivity (3200 K, scene reflectivity 89%, F1.2)
Color
30 IRE: 0.30 Lux
50 IRE: 0.65 Lux
100 IRE: 2.6 Lux
NightSense
30 IRE: 0.012 Lux
50 IRE: 0.26 Lux
100 IRE: 1.04 Lux
Controls Color/NightSense: Auto, Forced
Dynamic Range: 60 dB (10-bit image processing)
Signal-to-noise Ratio: > 50 dB
BLC: Center window weighting
Gain: 20 dB (max)
White Balance: ATW (2500 to 10000 K), ATWHold
Shutter: Auto 1/60 to 1/50000) automatic flickerless, fixed selectable
Auto Black: Automatic continuous, Off
Privacy Masking: Four independent areas, fully programmable
Video Motion Analysis: Motion+ or IVA
Test Pattern Generator: Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV plane
Synchronization: Internal, Line Lock, selectable
Controls: OSD with soft-key operation (multi-lingual)
Audio Standard: G.711 300 Hz to 3.4 kHz at 8 kHz sampling rate
Signal-to-noise ratio: > 50 dB
Audio I/O Audio: 1 x mono line in, 1 x mono line out
Signal line in: 9 kOhm typical, 5.5 Vpp max
Signal line out:
3.0 Vpp at 10 kOhm typical
2.3 Vpp at 32 Ohm typical
1.7 Vpp at 16 Ohm typical
Alarm Inputs Alarm: 1 input
Activation voltage: +5 VDC to +40 VDC (+3.3 VDC with DC-coupled 22 kOhm pull-up resistor)
Relay Outputs Relay: 1 output
Connector: Clamp
Voltage: 30 VAC or +40 VDC
Maximum 0.5 A continuous, 10VA
Software Control Unit Configuration: Via web browser or Configuration Manager
Flicker Control: 50/60 Hz, selectable
Software update: Flash ROM, remote programmable
Network Protocol RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, 802.1x, UPnP
Encryption TLS 1.0, SSL, AES (optional)
Ethernet STP, 10/100 Base-T, auto-sensing, half/full duplex, RJ45
PoE IEEE 802.3af compliant
Lens Focal Length: 2.8-10mm
Type: IR corrected
Zoom: manual
Focus: manual
Iris: Automatic iris control
Viewing angle: Wide 100.8 x 73.7° (H x V)
Tele 28.5 x 21.4° (H x V)
Power Requirements 24 VAC ±10% 60 Hz
12 VDC ±10%
Power-over-Ethernet
Power Consumption 500 mA / 650 mA IVA (12 VDC)
500 mA / 650 mA IVA (24 VAC)
200 mA (PoE 48 VDC)
Operating Temperature Heater Off: -4 ~ 122°F (-20 ~ 50°C) - colds start
Heater On: -58 ~ 122°F (-50 ~ 50°C)
IP Rating IP 66 and NEMA4X
Construction Mounting: Flush mount or surface mount
Color: White (RAL9010) trim ring with black inner liner
Adjustment range: 360º pan, 90º tilt, ±90º azimuth
Dome bubble: Polycarbonate, clear with UV blocking antiscratch coating
Trim ring: Aluminum
Specifications
| Condition | Used |
|---|---|
| Type | Cameras |
| Camera Type | Dome |
| Brand | Bosch |
| Features | Outdoor/Weatherproof, Vandal Proof, Wide Angle |
| Connectivity | IP/Network - Wired |
| Color Mode | Color |
| Model | NDC-455V03-21P |
| MPN | NDC-455V03-21P |
| Country/Region of Manufacture | Unknown |
| Condition Description | Please Be Advised! This unit was inspected and was found to be USED and in good cosmetic condition. The outer casing show signs of normal use. The lens is clear and contains some small scratches. The unit will be packaged in a plain brown box. The unit was removed from a working environment. Unit is not tested. |
-
