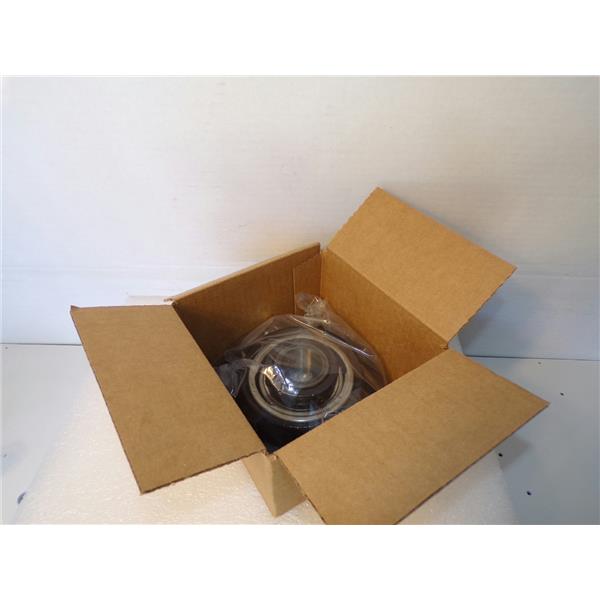

Please Be Advised! The unit was inspected ad was found to be new and never used. The units are package in plan brown box due to the damage to the of the original. The original package show signs of shelf wear.

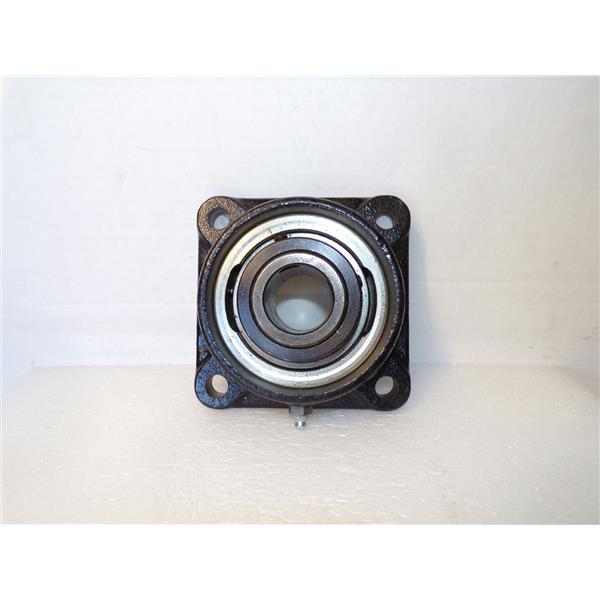

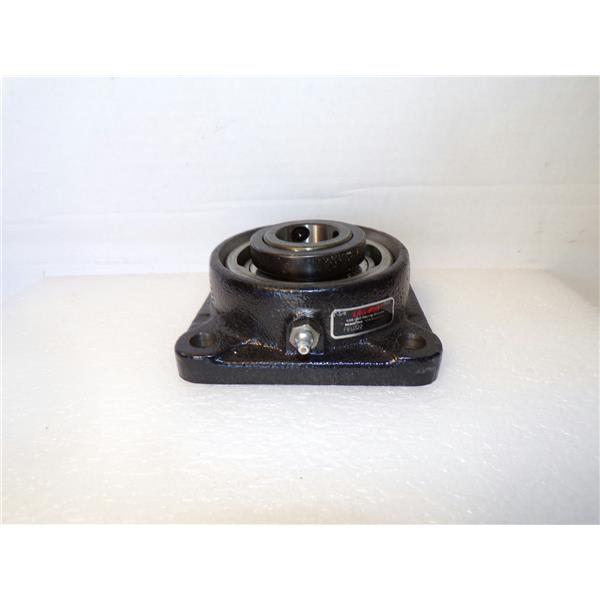

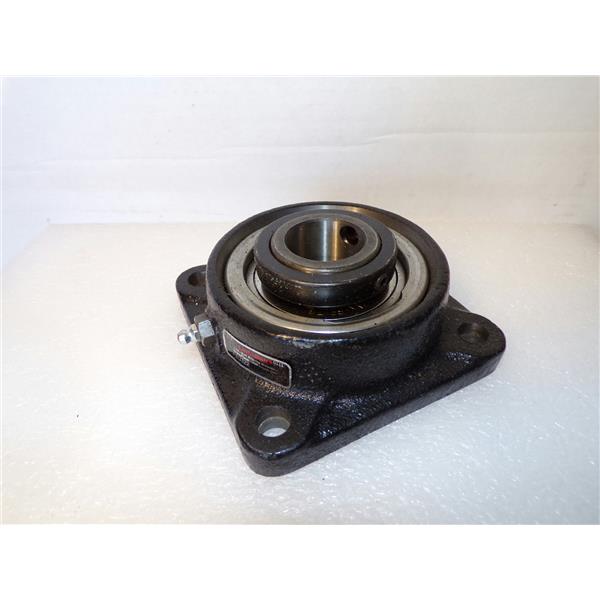

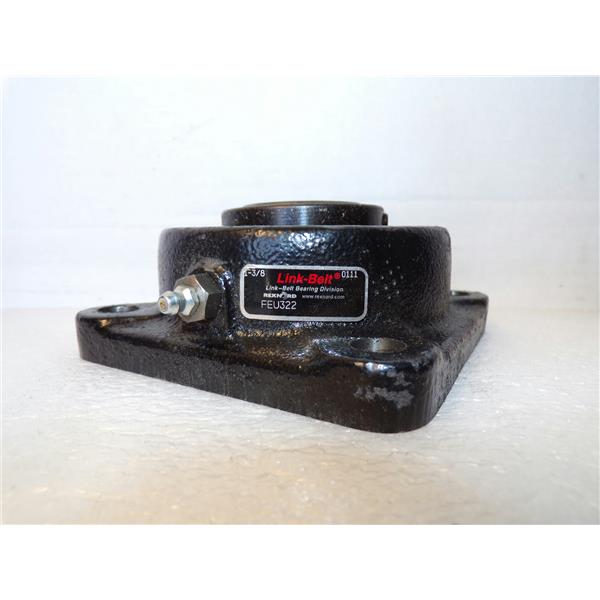

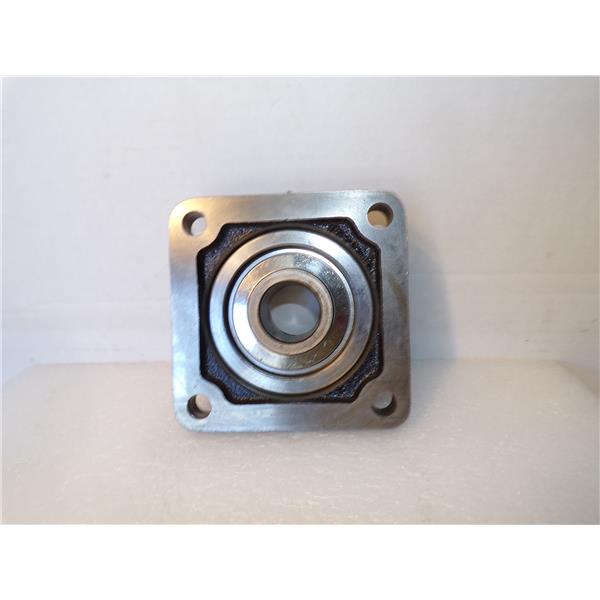

Link Belt FEU322 1 3/8 Mounted Bearing Heavy Duty Cast 4Bolt Square Flange Block
Specifications
Ability to Re-lubricate: Yes
Bearing Series: 300
Bearing Standoff Distance: 5/32 in
Bolt Diameter: 1.38 in
C Basic Dynamic Load Rating: 5,760 lbf
Co Basic Static Load Rating: 4,290 lbf
D - Length Through Bore [Nom]: 2 3/32 in
Diameter of the Shaft: 1 3/8 in
Distance Between Bolt Holes [Nom]: 4 in
Distance from Housing Cast Face to Inner Ring Long Hub Face: 7/16 in
Distance from Housing Cast Face to Locking Feature Face: 7/16 in
Distance from Mounting Surface to Cap Face: 2 1/2 in
Distance from Mounting Surface to Collar Face: 2 1/4 in
Duty Type: Heavy Duty
Expansion Capability: Yes
F - Mounting Bolt Size: 1/2 in
Flange Shape: Square
H - Mounting Flange Width: 5/8 in
Housing Diameter: 4 15/32 in
Housing Material: Cast Iron
Housing Overall Circle Diameter: 6 25/32 in
Housing Type: Flange Block
Inner Ring Type: Wide
Locking Collar Outside Diameter: 2 9/16 in
Locking Collar Type: One Setscrew (Spring) Locking Collar
Mounting Pad Width: 5 1/8 in
Number of Mounting Bolts for Block: 4-Bolt
Product Feature Summary: Cast iron housing; Corrosion resistant powder coating; alignable & re-lubricates; Fixed or Expansion - Up to 3/8" expansion; See Features & Benefits for additional info.; Spring locking setscrew mount
Rolling Element: Ball
Size Code: 323
Special Feature: 4-Bolt Flanged Block
Speed [Max]: 7,550 rpm
Total Amount of Axial Expansion: 9/32 in
Type of Seal: Clearance Seal
rl fdk 80805238
Specifications
| Condition | New – Open box |
|---|---|
| Brand | Link Belt |
| MPN | FEU322 |
| Model | FEU322 |
| Condition Description | Please Be Advised! The unit was inspected ad was found to be new and never used. The units are package in plan brown box due to the damage to the of the original. The original package show signs of shelf wear. |
-
